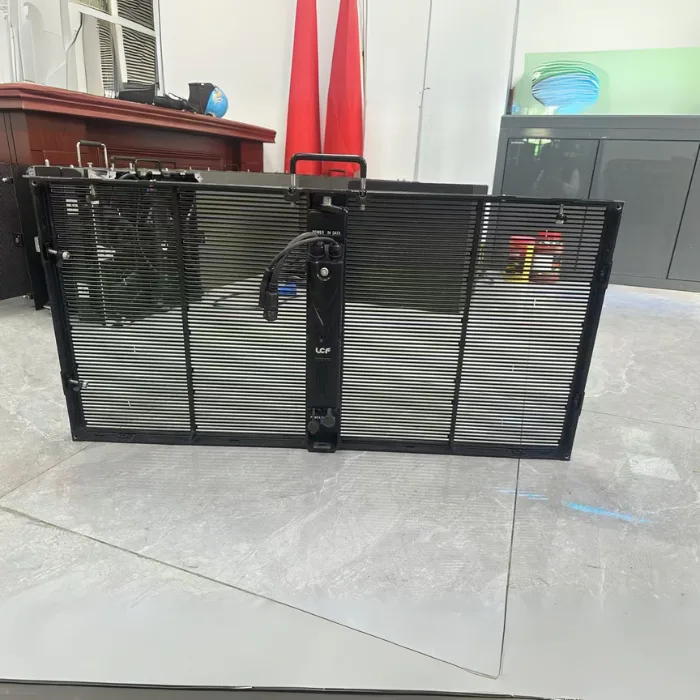

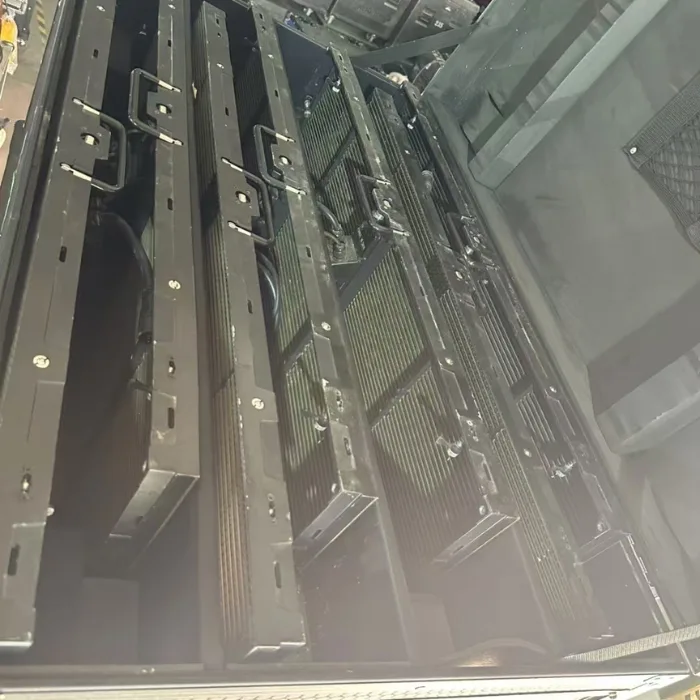

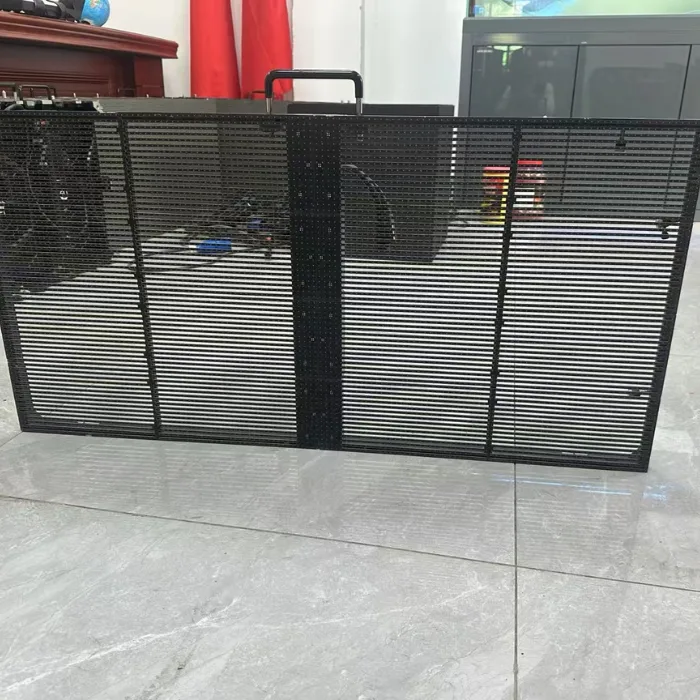

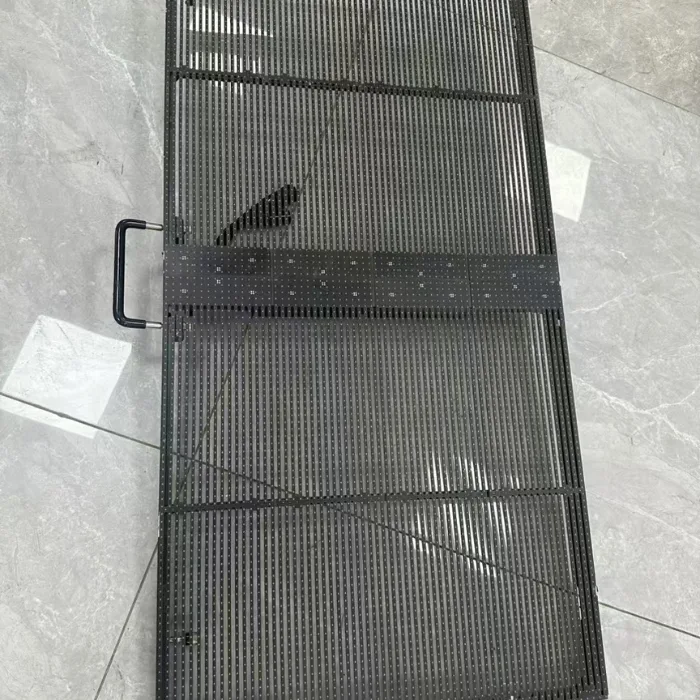

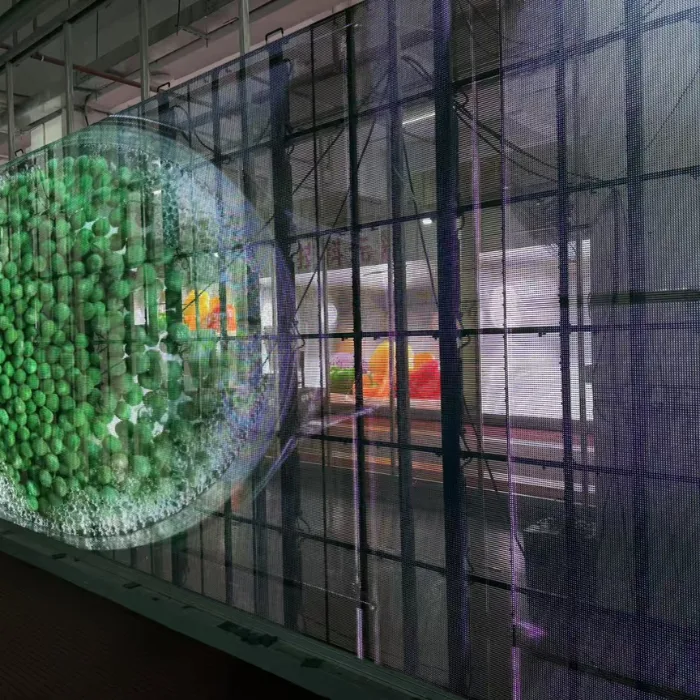

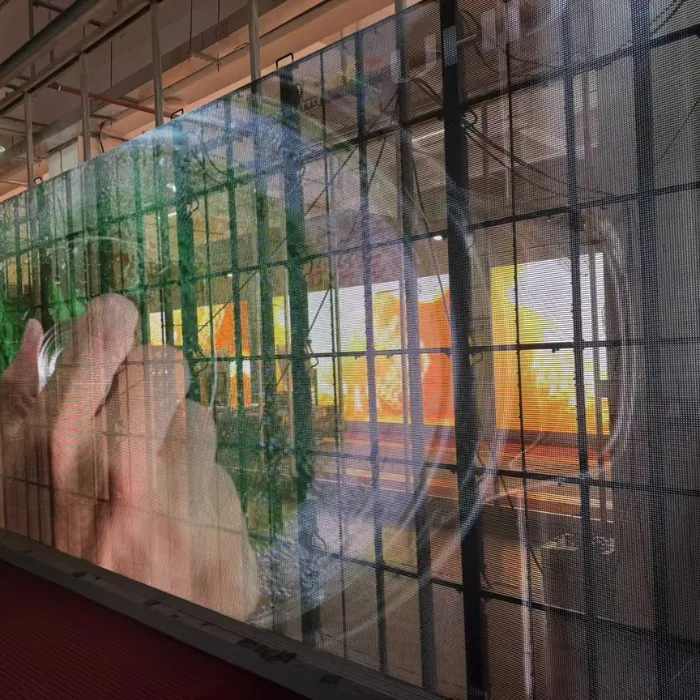

Used Lianchengfa LTX-S series 7.8-inch outdoor transparent screen
| Pixel Pitch (mm) | 7.8 |
| Cabinet Size (mm) | W1000 × H500 × D92 |
| Cabinet Weight (kg) | 8.4 |
| Cabinet Material | Die-cast Aluminum |

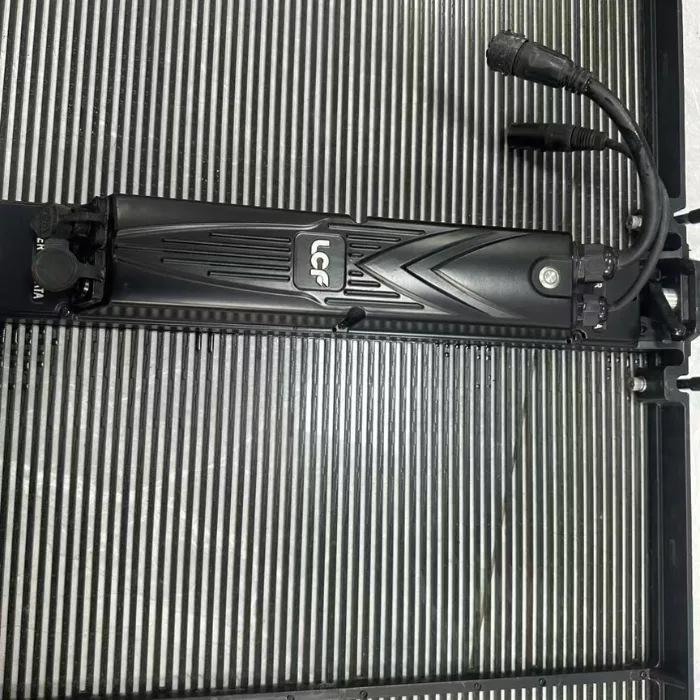

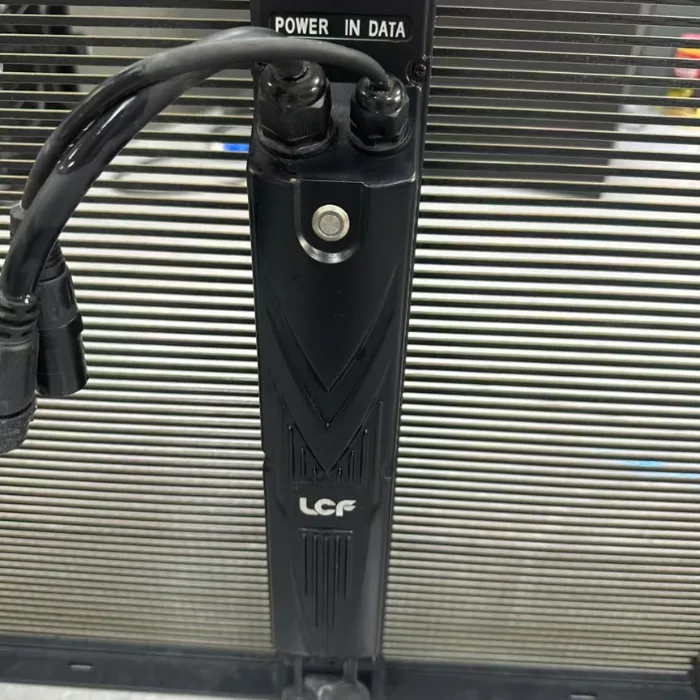

| Maintenance Method | Rear Maintenance |
| Protection Rating | IP65 |
| Cabinet Resolution (dots) | 128 × 64 |
| Refresh Rate (Hz) | ≥3840 |
| White Balance Brightness (cd/m²) | 1000-2000 |
| Gray Scale (bit) | 14-16 |
| Horizontal/Vertical Viewing Angle (°) | 160/140 |
| Avg/Max Power Consumption (W/m²) | 180/480 |
| Operating Temperature/ Humidity | -25℃~+75℃/10~90%RH |
| Installation Method | Suspension, Fixed Installation |
| Application Environment | Indoor, Outdoor |
