Product Overview

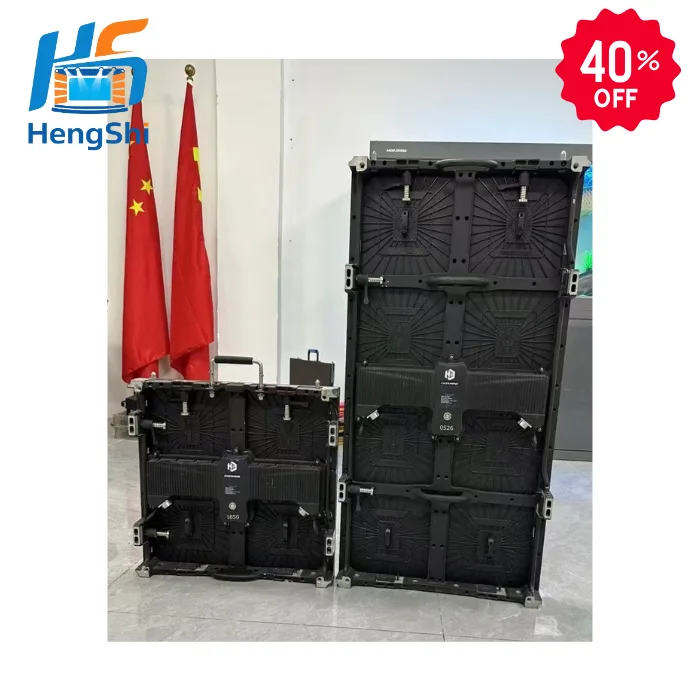

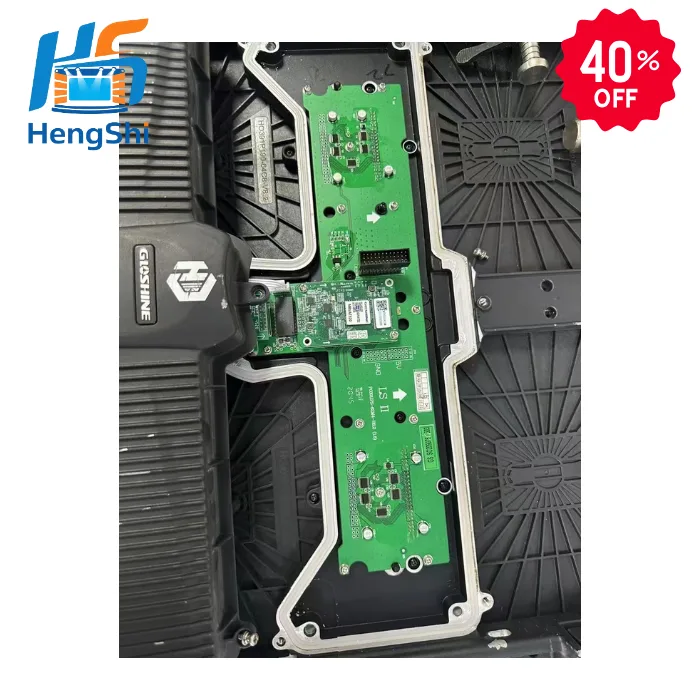

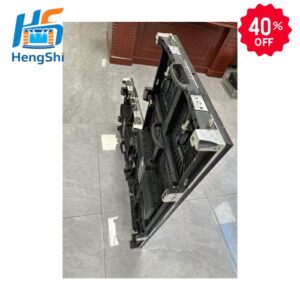

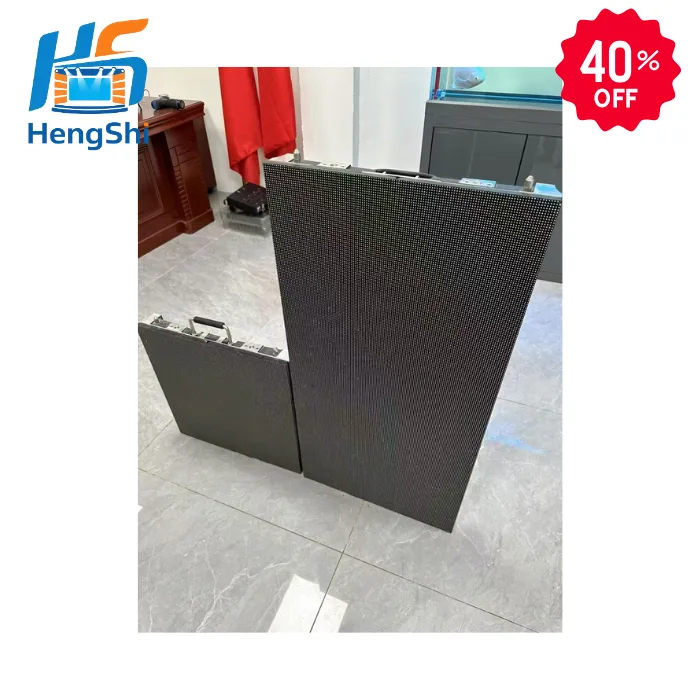

LS series breaks through the constraints of LED display cabinet industrial design and creates a “classic” that later generations pursue; the 500mm*1000mm cabinet adopts all-black electrophoresis technology, which is quick to install and doubles the efficiency; the cabinet covers right angles and bevels, and can achieve a variety of internal and external arc splicing; the cabinet connectors are made of high-strength metal material, with high precision, sturdiness and durability; the module supports front and rear maintenance; the power supply rear cover has a buckle lock design, which does not require tools for disassembly and is more convenient for maintenance.
| Technical Specifications – LS3.91 Outdoor LED Panel | |
|---|---|
| Model | LS3.91 (Outdoor) |
| Pixel Pitch | 3.91mm |
| LED Type | SMD1921 |
| Pixel Density | 65,536 pixel/m² |
| Brightness | 3,000-5,000 cd/m² |
| Color Temperature | 6,500-9,500K |
| Scan Mode | 1/16 |
| Cabinet Dimensions (L×W×H) | 500 × 500 × 72 mm |
| Cabinet Resolution | 128 × 256 pixel |
| Cabinet Weight | 12.50 kg |
| Cabinet Material | Die-cast aluminum |
| Max Power Consumption | ≤700 W/m² |
| Average Power Consumption | ≤350 W/m² |
| Viewing Angle | H:140° / V:120° |
| Refresh Rate | 3,840Hz |
| Grayscale Depth | 14-16 bit |
| Protection Rating | Front IP65 / Rear IP54 |
| Operating Humidity | 10%-90% RH |
| Operating Temperature | -20℃ ~ +45℃ |
| Lifespan | 50,000 hours |
| Storage Conditions | -40℃ ~ +60℃; 10%-60% RH |
