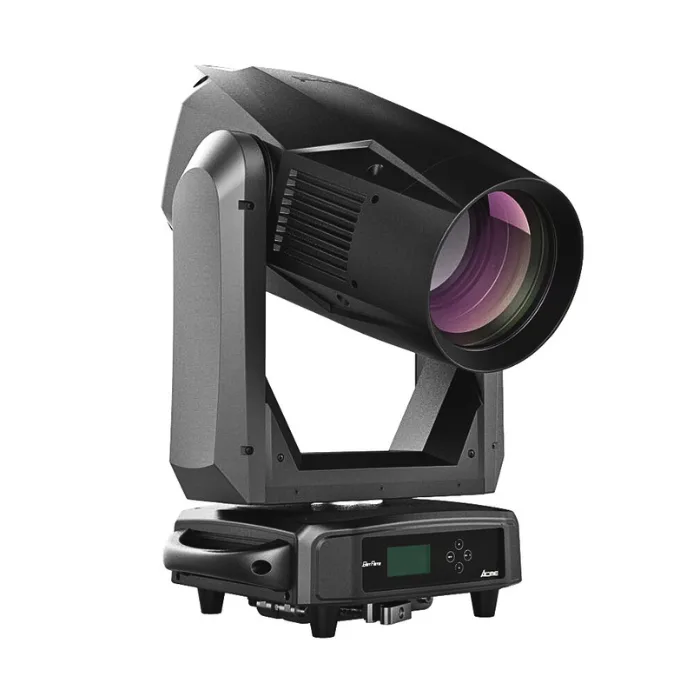

ACME XA-1000 BSWF Professional Stage Light
Light Source & Performance
| Light Source | SUL1000X LED |
| LED Lifetime | 20,000 hours |
| Luminous Flux | 35,000 lumens |
| Color Rendering Index (CRI) | High Output Mode: Ra>70 High CRI Mode: Ra>90 |
| Brightness | 3,500 nits |
Optical System

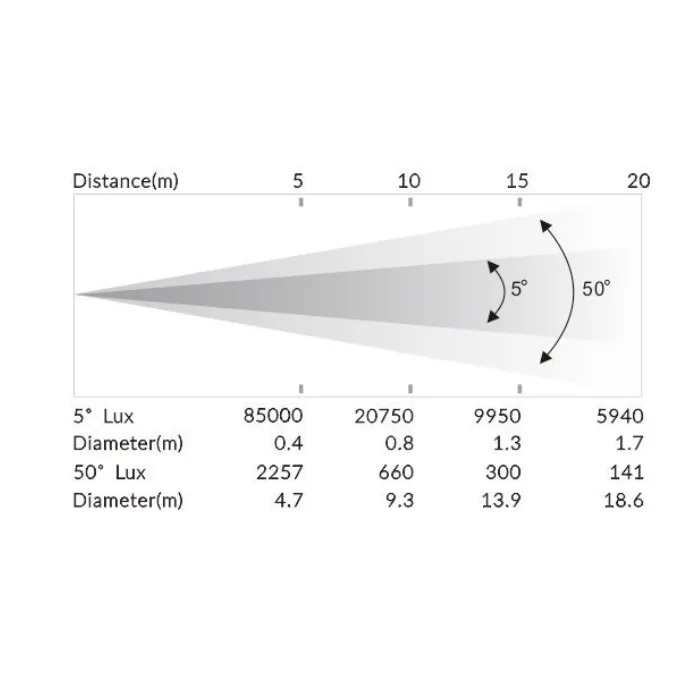

| Zoom Range | 5° – 50° |

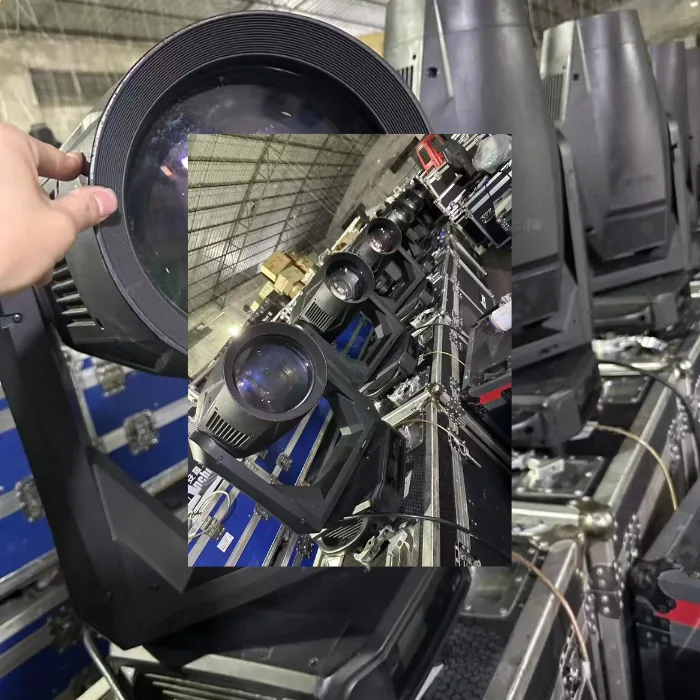

| Optical Quality | Premium glass optics for crisp projection |
| Gray Scale | 14-bit |
| Dimming | 8-bit or 16-bit electronic dimming |
Control System

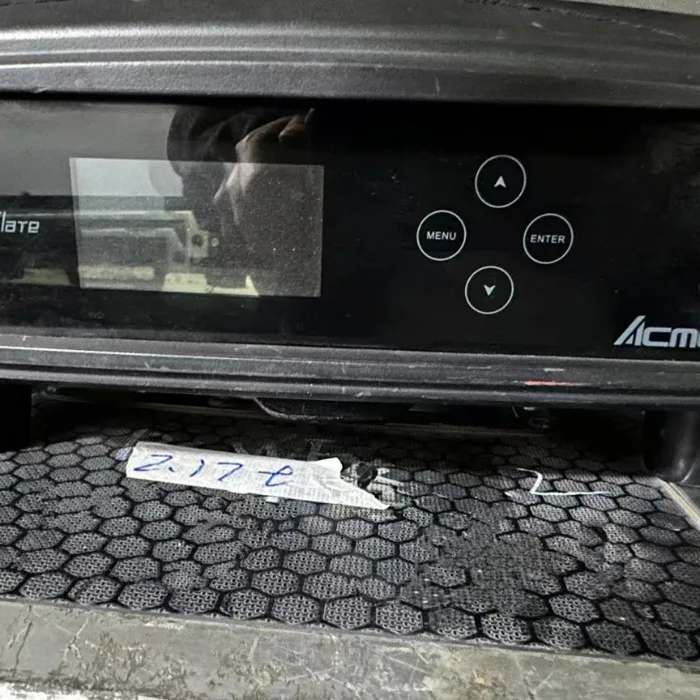

| Control Panel | 4 touch buttons + LCD display |
| Protocol Support | DMX512, Art-Net, RDM (Wireless optional) |
| DMX Channels | 20/25/29/34-channel modes |
| Pan/Tilt Range | X:540° | Y:270° (16-bit precision) |
| Backup Power | Built-in NiMH battery |
| Firmware Updates | Via DMX connection |

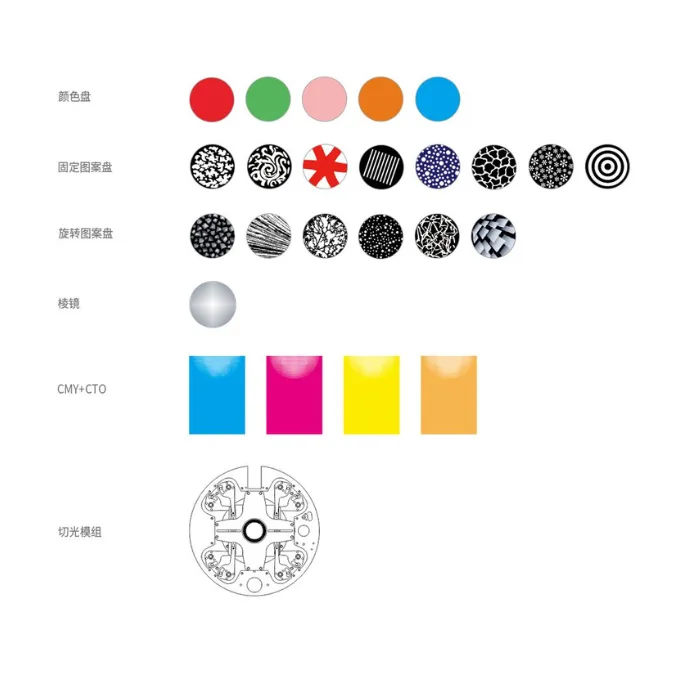

Pattern & Effects System
| Rotating Gobo Wheel | 6 patterns + open |
| Fixed Gobo Wheel | 8 patterns + open |
| Color Wheel | 5 colors + open |
| Gobo Size | Ø37.3mm, inner Ø25mm (1.1mm thick) |
| Replacement System | Slot-and-lock design |
Cutting System
| Shutter System | 4 independently controllable blades |
| Positioning | Smooth positioning and rotation (±45°) |
| Shutter Control | Single-blade blackout capability |
Physical Specifications

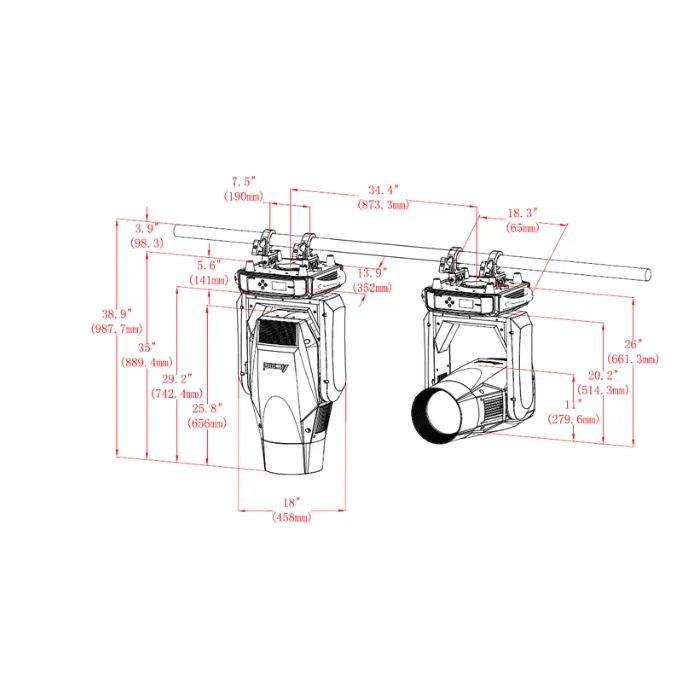

| Dimensions (H×W×D) | 889 × 465 × 352mm (35″ × 18.3″ × 13.8″) |
| Weight | 44.6 kg (98.3 lbs) |
| Input Voltage | AC 100-240V, 50/60Hz |
| Power Consumption | 1370W |
| Connections | PowerCON input 3-pin/5-pin XLR (DMX in/out) RJ45 (Art-Net) |
Environmental Specifications
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -10°C to +60°C |
| Surface Temperature | ≤65°C |
| IP Rating | IP65 (Front) / IP54 (Rear) |
Certifications
| Safety Certifications | CE, cETLus |
